Take your pond to a whole new level.

Introducing a powerful new way to enhance the water quality in your pond and the safety of your koi



The Advantage Oxygen System with Advanced Life Support

Unlock the benefits of pure oxygen

What is “The Oxygen Saturation Point”?

The oxygen saturation point refers to the maximum amount of dissolved oxygen that can be present in water under specific conditions, typically at a given temperature and atmospheric pressure. It represents the point at which water can no longer absorb any more oxygen from the air by itself.

Improved koi health

Maintaining high levels of oxygen in the pond water can greatly enhance the overall health of your koi. This can lead to increased growth, brighter colors, and stronger immune system. In the event of a sore or injury, this additional oxygen-rich water has been shown to speed up the healing process.

Improved koi health

High levels of oxygen in the pond water can greatly enhance the overall health of your koi. This can lead to, not only increased growth and brighter colors but also helping their immune system to function more efficiently. In the event of a sore or injury, this additional oxygen-rich water has been shown to speed up the healing process.

Supercharge your filter

The beneficial bacteria in the filter is an aerobic bacteria, which means it cannot function without oxygen. Dramatically increasing the oxygen level of the water flowing through your filter system can make a huge difference in the ability of this bacteria to remove both ammonia and nitrites from the water. This will provide healthier water for the koi to thrive in.

A safety net for your koi

The most common reason for losing koi in large numbers is a lack of oxygen. This is usually due to a power outage, a pump losing prime, or some sort of equipment failure. The Advantage Oxygen System provides a comprehensive safety net to prevent any loss of koi due to the above reasons. Having this system installed can provide a real “peace of mind” especially for those who are away from home a lot.

A safety net for your koi

The most common reason for losing koi in large numbers is a lack of oxygen. This is usually due to a power outage, a pump loosing prime, or some sort of equipment failure. The Advantage Oxygen System provides a comprehensive safety net to prevent any loss of koi due to the above reasons. Having this system installed can provide a real “peace of mind” especially for those who are away from home a lot.

The heart of the system

The Advantage Oxygen Generator

  • Powerful, commercial-grade oxygen generator manufactured by Airsep Corporation and designed to operate 24 hours a day
  • Produces 6 liters per minute of 95% pure oxygen at 10 PSI
  • Capable of oxygenating ponds from 1,000 up to 50,000 gallons (Depending on how many O2 stones you add)

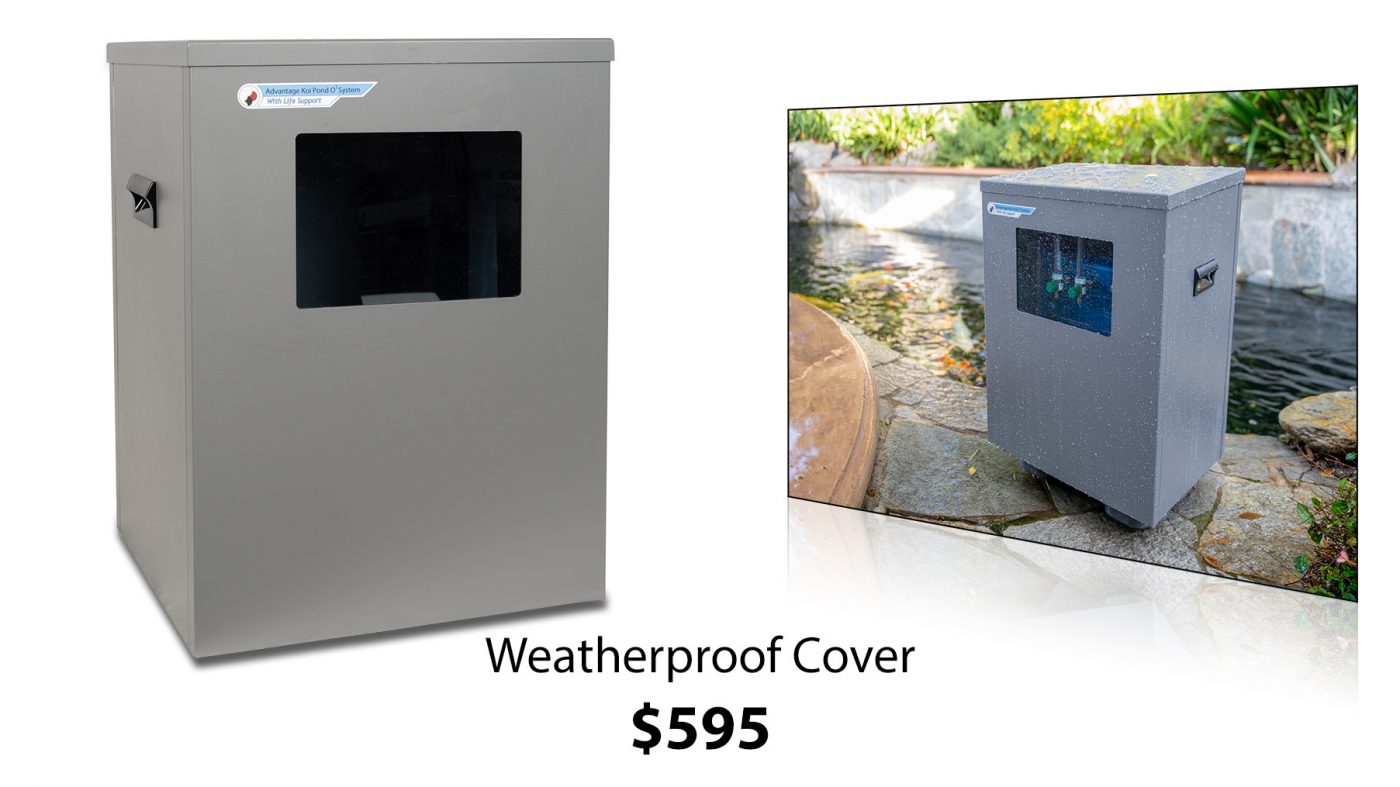

  • Optional cover for outdoor use available

Take Control of Your Pond’s Oxygen Level

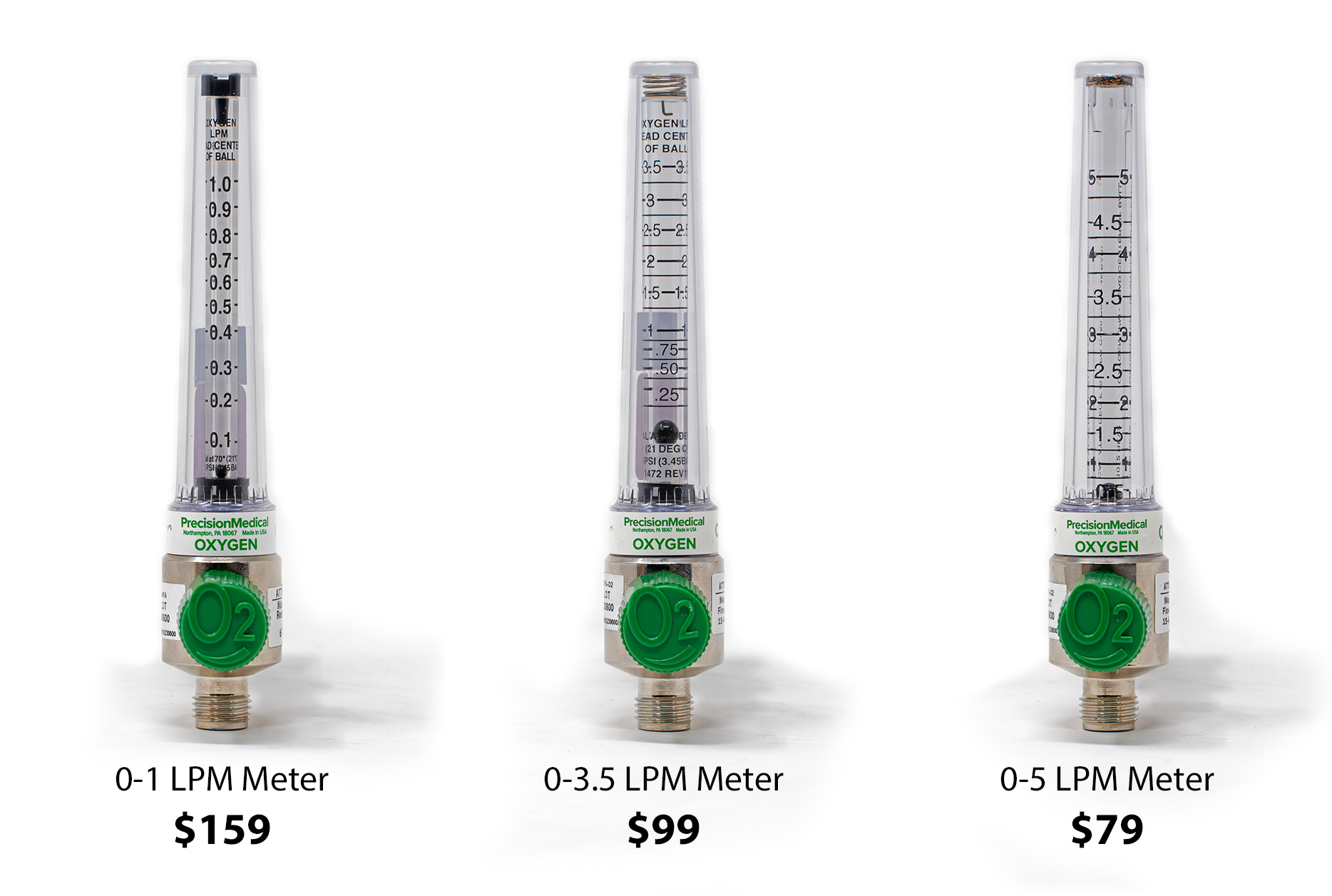

  • Comes standard with two flow meters (0-1 & 0-5 liters per minute)

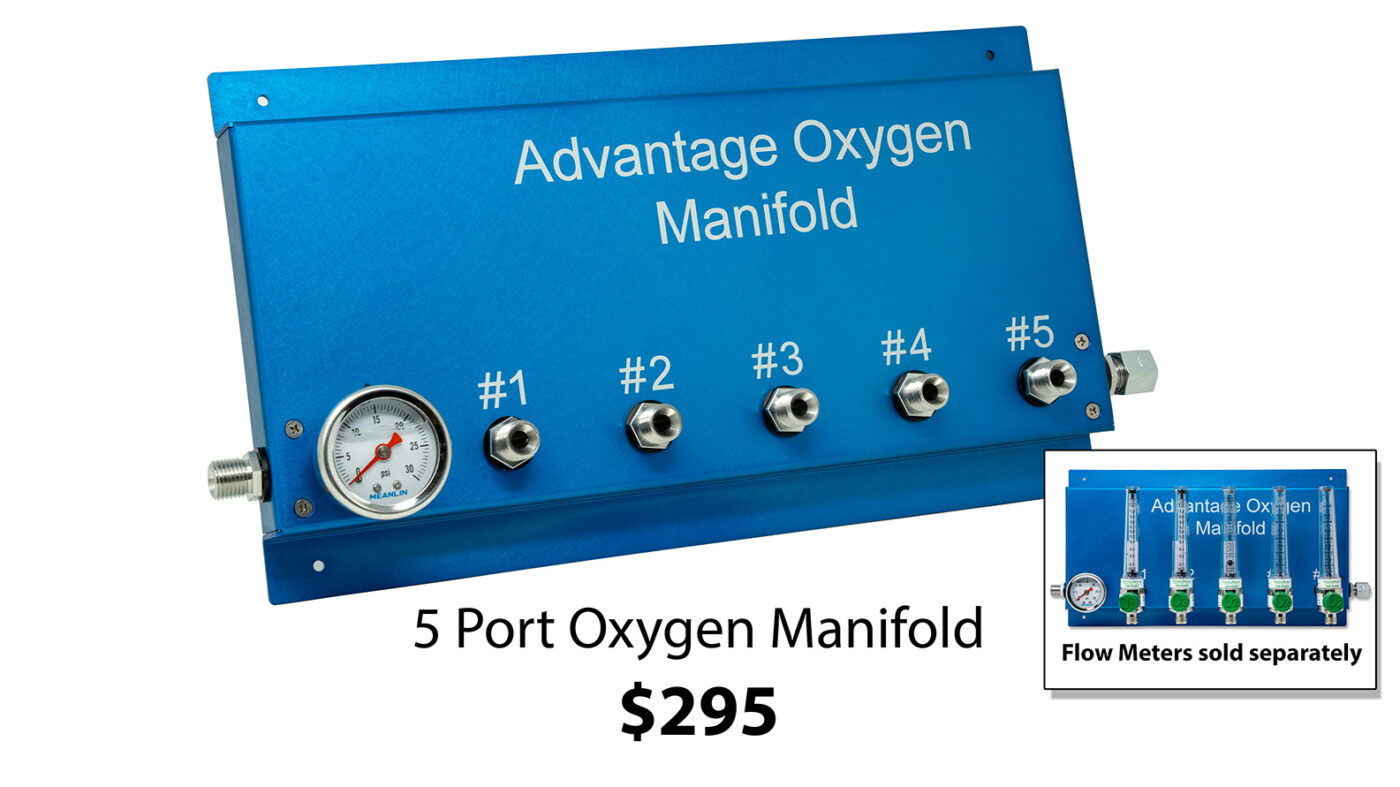

  • Can drive up to 6 oxygen stones (with the optional Advantage Oxygen Manifold)
  • Also capable of driving the new Advantage Oxidation System

The Advantage Pro Oxygen Generator

  • Powerful, commercial-grade oxygen generator manufactured by Airsep Corporation and designed to operate 24 hours a day
  • Produces 20 liters per minute of 95% pure oxygen at 10 PSI
  • Capable of oxygenating ponds from 5,000 up to 100,000 gallons (Depending on how many O2 stones you add)
  • Designed to drive two Advantage Oxidation Systems (AO) at the same time
  • Ideal for koi dealers who are looking to both improve the water quality and provide a serious life support system for up to 10 separate holding tanks of 10,000 gallons each.

the key to the system

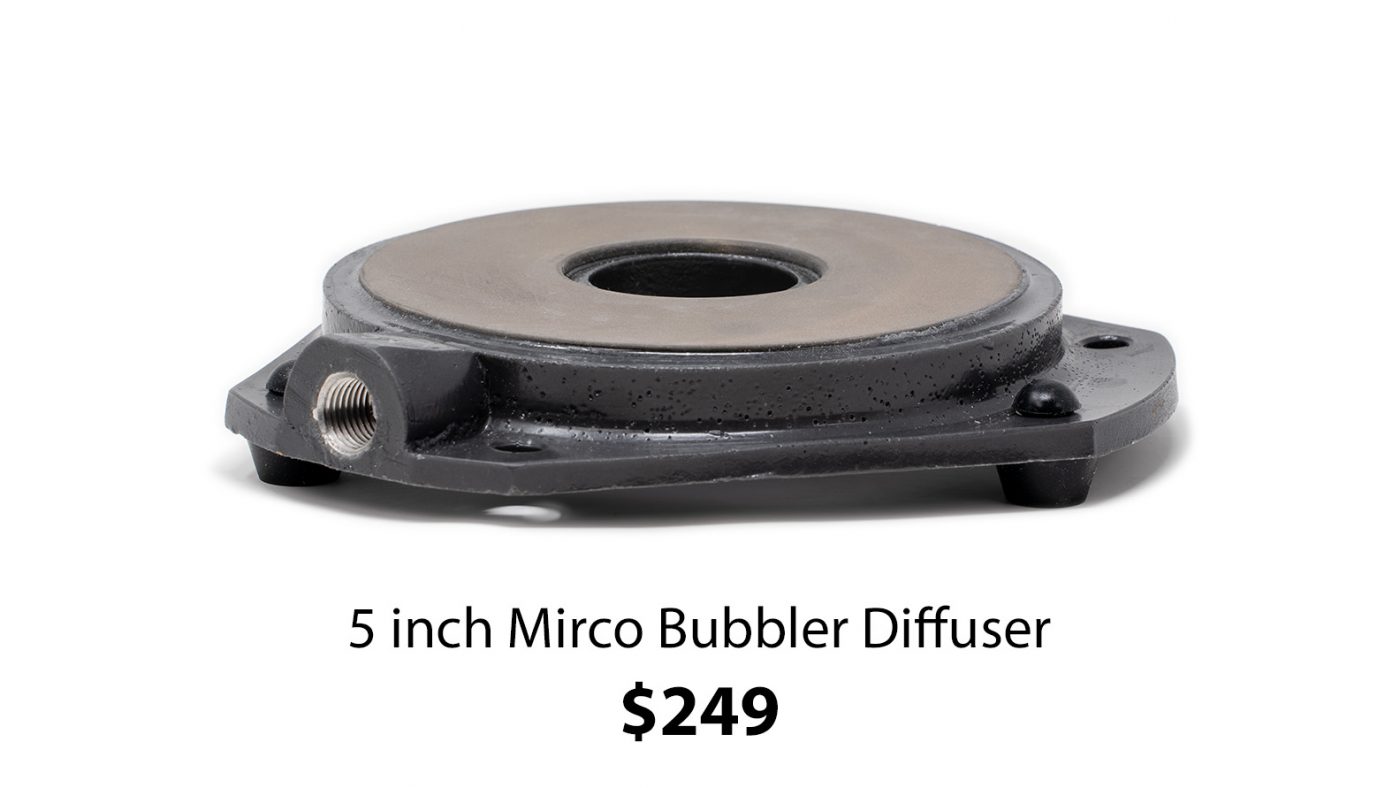

The Advantage Micro Bubble Diffuser

Antimicrobial, fine ceramic material resists algae build-up. This stone coupled with the 95% oxygen produced by the oxygen machine allows you to easily dial in the ideal level of saturated oxygen for your particular pond and fish load.

Part of the key to this stone is its ability to break down the oxygen gas into micro fine bubbles which greatly increases the surface area of the gas. This in turn provides an oxygen transfer rate nearly 100 times more efficient than bubbles from a normal air stone.

The other key feature of this stone is that it operates at a remarkably low pressure of only 7 psi. This allows for the use of a very quiet, highly efficient-low pressure oxygen concentrator for its constant supply of pure oxygen.

Maximize the efficiency of your Oxygen

1 liter per minute

Open Line

1 liter per minute

Standard Air Stone

1 liter per minute

Advantage Micro Bubble Air Diffuser

1 liter per minute

Open Line

1 liter per minute

Standard Air Stone

1 liter per minute

Advantage Micro Bubble Air Diffuser

Advanced Life support System

A comprehensive backup life support system for your koi in the event of a power or equipment failure

Take some stress out of your life with the Advantage Life Support System. This feature, which comes standard with every Advantage Oxygen Generator, will help ease your mind while you are out of town or if you live in an area prone to power loss.

Every pond owner’s greatest fear is that something might go wrong and they lose all their koi suddenly. The most common reason for losing all your koi suddenly is a lack of oxygen.

The new Advantage Life Support System greatly reduces the chance of ever losing a single koi due to a lack of oxygen from either an equipment failure or a power outage. It is designed to automatically maintain a high level of oxygen in your pond in almost any situation.

How System works - during normal operation

Oxygen generator provides a surplus of oxygen 24 hours a day for your koi

In the event of a Pump failure

Oxygen generator provides a surplus of oxygen 24 hours a day for your koi

In the event of a Power outage

Life support automatically switches from the generator over to the backup tank maintaining the oxygen in the pond at or near the saturation level.



If the optional iSocket power loss alert module is purchased and installed, then the system simultaneously sends out a text message to as many as four different phone numbers that power has been lost.

Life Support comes with the following

  • Oxygen tank regulator
  • Loss of power actuator valve
  • 10’ heavy-duty rubber hose connects backup oxygen tank to Oxygen Generator
  • Due to shipping complications this system does not include the oxygen tank. A tank can easily be obtained from your local welding supply store.

peace of mind right at your fingertips

Optional Text Message Alert System

  • The Advantage Oxygen System comes pre-wired for the iSocket add-on device.
  • This optional smart device will automatically send out a text message to as many as four different phone numbers in the event the system detects a loss of power. The result is that if your pond ever loses power for any reason, this system will automatically notify you that there is a problem with your pond.
  • Important Note: This smart device has a built in battery allowing it to send out a signal to a cellular network in the event of a power outage. (Alert systems based on a WiFi network can be unreliable, because in a major electrical outage, WiFi service will also stop operating)
  • iSocket smart device sold separately and requires a monthly subscription to send sms alerts.

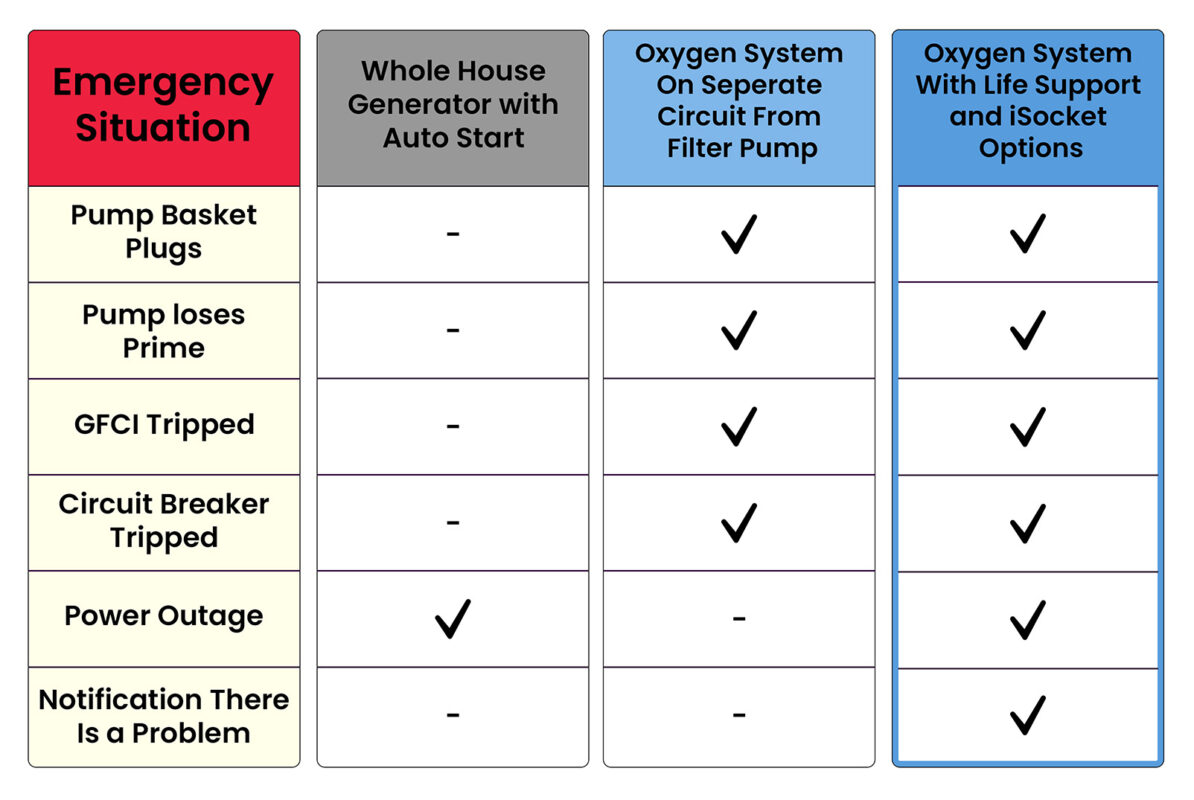

Which System is right for you?

Advantage Oxygen System

$2,995



6 Liters per minute at 9 psi

Drives up to 6 Micro Bubble Diffusers

or

(1) Diffuser and (1) AO System



(1) 0-1 LPM Flow Meter

(1) 0-5 LPM Flow Meter

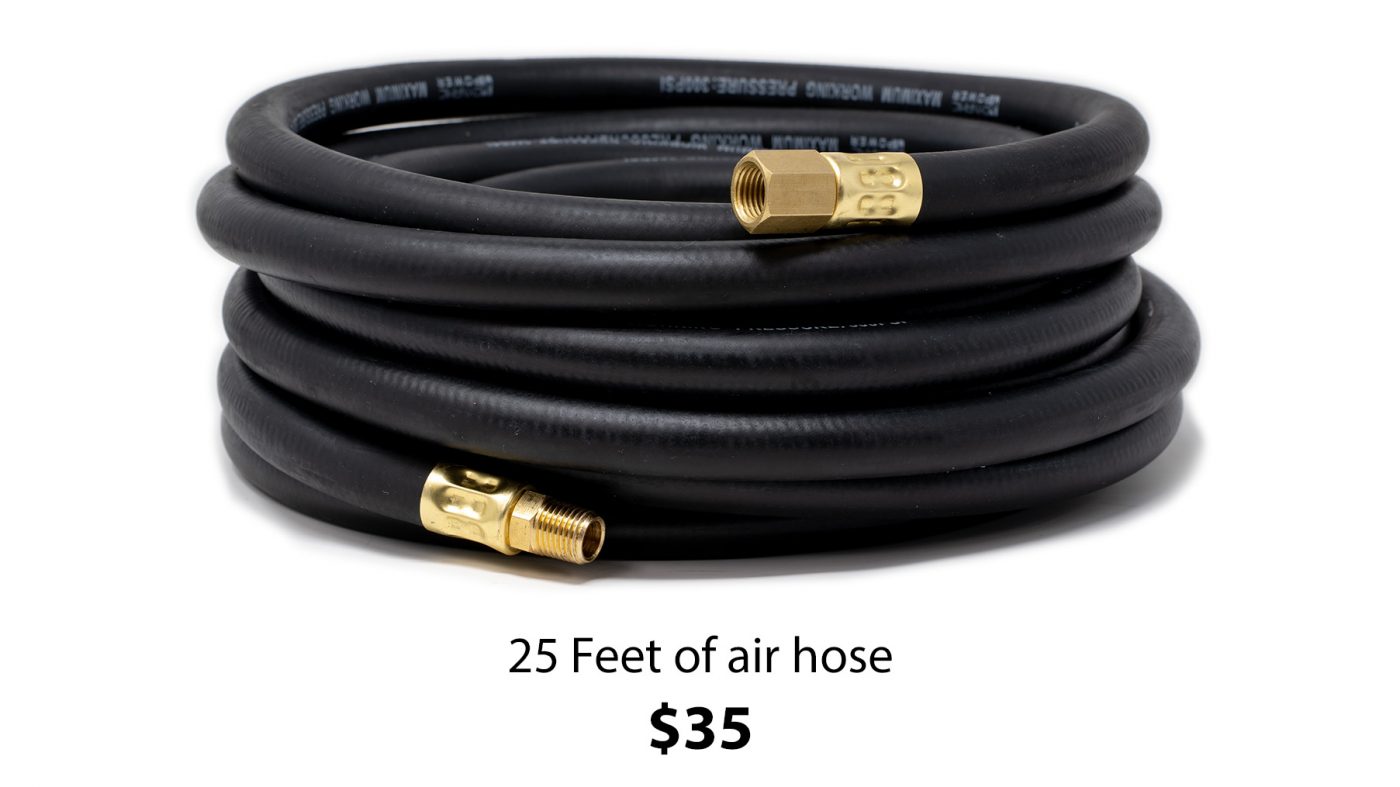

(1) 25 foot air hose for diffuser

(1) 5 inch Advantage Micro Bubble Diffuser

Pre-Wired for iSocket power loss alert system

Advantage Pro Oxygen System

$3,795



10 Liters per minute at 20 psi

Integrated 0-30 PSI pressure gauge

Drives up to 10 Micro Bubble Diffusers

or

(5) Diffusers and (1) AO System

or

(2) AO Systems



(1) 0-1 LPM Flow Meter

(1) 0-5 LPM Flow Meter

(1) 25 foot air hose for diffuser

(1) 5 inch Advantage Micro Bubble Diffuser

Pre-Wired for iSocket power loss alert system

Call (916) 652-4231 for more information and to place your order

Customize your system

Call (916) 652-4231 for more information and to place your order
